Pc build for a Product Designer
Hey,
I am looking into building a pc for work use. I am a product design student and will be using it heavily in Adobe programs and in CAD programs. I will be used for rendering so I know I need a good graphics card. As I have been looking into what to get for my build I am a bit overwhelmed with all there is to consider. I am looking at a rough budget of $1500, I am looking for a fast machine that can handle my work flow stated. If I could get some recommendations to look into it would be much appreciated because I am not sure where to start and devote my research. Thanks. |
|
|
|
12-08-2011, 01:54 AM
|
#2 |
|
Forum Administrator
Staff
Premium Member
Join Date: May 2000
Location: Joplin MO
Posts: 37,771
|
Does that $1500 budget need to include peripherals (keyboard, mouse, monitor(s), etc.) and an operating system? Do you have any usable hard drives (hard drive prices are sky high right now)?
|
|
|
|
|
12-08-2011, 12:32 PM
|
#3 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
I have a monitor, but i am looking to buy everything else.
|
|
|
|
|
12-08-2011, 12:50 PM
|
#4 |
|
Mondsreitersmann
Join Date: Jul 1999
Location: Skingrad
Posts: 8,781
|
I hope that budget doesn't include the software.
__________________
Darum still, füg' ich mich, wie Gott es will. Nun, so will ich wacker streiten, und sollt' ich den Tod erleiden, stirbt ein braver Reitersmann. |
|
|
|
|
12-10-2011, 05:03 PM
|
#6 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
Thanks for the build recommendation. I will probably end up going with it. I was looking at expanding the RAM to 16gb but I can't figure out how to find out how much ram the machine and handle and use. I was looking to just buy 2 of the CORSAIR Vengeance 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Low Profile Desktop Memory Model CML8GX3M2A1600C9
|
|
|
|
|
12-10-2011, 05:16 PM
|
#7 |
|
Forum Administrator
Staff
Premium Member
Join Date: May 2000
Location: Joplin MO
Posts: 37,771
|
Newegg.com - CORSAIR Vengeance 16GB (4 x 4GB) 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Desktop Memory Model CML16GX3M4A1600C9B
Motherboard supports 32gb, but Windows 7 Home Premium only supports 16gb. 8gb modules are still very expensive. Last edited by glc; 12-10-2011 at 05:18 PM. |
|
|
|
|
12-10-2011, 05:58 PM
|
#8 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
cool, thanks for the help.
|
|
|
|
|
12-10-2011, 07:24 PM
|
#9 |
|
Mondsreitersmann
Join Date: Jul 1999
Location: Skingrad
Posts: 8,781
|
There's also Windows 7 Pro, which is much better than Home... *wink, wink*
|
|
|
|
|
12-18-2011, 12:37 PM
|
#10 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
I was about to purchase the parts when I noticed that the graphics card is currently out of stock at newegg. I was looking at other cards and was wondering if you guys had any words of caution against this card.
EVGA SuperClocked 012-P3-1572-AR GeForce GTX 570 (Fermi) 1280MB 320-bit GDDR5 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card Newegg.com - EVGA SuperClocked 012-P3-1572-AR GeForce GTX 570 (Fermi) 1280MB 320-bit GDDR5 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card or what you guys think of this card. EVGA 01G-P3-1561-AR GeForce GTX 560 Ti FPB (Fermi) 1GB 256-bit GDDR5 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card Newegg.com - EVGA 01G-P3-1561-AR GeForce GTX 560 Ti FPB (Fermi) 1GB 256-bit GDDR5 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card Also do you guys know the average time they might get a new stock in? maybe early January? |
|
|
|
|
12-18-2011, 02:36 PM
|
#11 |
|
Moderator
Staff
Premium Member
Join Date: Nov 2008
Location: Detroit, MI
Posts: 3,794
|
Both are excellent cards with the 570 being a littler better. The 570 has more processing cores and a better memory interface (process's faster).
|
|
|
|
|
12-20-2011, 08:45 AM
|
#12 |
|
Forum Administrator
Staff
Premium Member
Join Date: May 2000
Location: Joplin MO
Posts: 37,771
|
I wouldn't hesitate to buy any EVGA -AR series card. It's a -KR, but this is also a great card for the money:
Newegg.com - EVGA 012-P3-2068-KR GeForce GTX 560 Ti (Fermi) 448 Cores Classified 1280MB 320-bit GDDR5 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card |
|
|
|
|
12-22-2011, 06:33 PM
|
#13 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
cool, thanks for the help!
|
|
|
|
|
12-27-2011, 04:21 PM
|
#14 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
Parts are ordered. Thanks for the help! I might be back if I have a problem with the build.
|
|
|
|
|
01-10-2012, 09:37 AM
|
#15 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
I got it my PC all put together. But I am unsure how to "use the SSD to cache it using Intel SRT" Can you help me with more specifics to setting that up?
http://img.photobucket.com/albums/v220/Un24/x1of5.jpg Thanks Last edited by thefultonhow; 01-12-2012 at 03:06 PM. |
|
|
|
|
01-12-2012, 11:17 AM
|
#16 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
Ran into an issue when installing all the drives and software. Only my 750GB that has my OS on it shows up. When I was installing Windows, it recognized all three hard drives. It gave me the option to choose which hard drive I wanted to install Windows on and I choose the 750GB. Now that is the only hard drive I can see on my computer. Anyone know why I can't see my other hard drives?
|
|
|
|
|
01-12-2012, 11:32 AM
|
#17 |
|
Mondsreitersmann
Join Date: Jul 1999
Location: Skingrad
Posts: 8,781
|
Yes, because you haven't partitioned nor formatted them yet. Go to the Disk Manager and do so.
|
|
|
|
|
01-12-2012, 03:07 PM
|
#18 |
|
Moderator
Staff
Premium Member
Join Date: May 2004
Location: Baltimore, MD
Posts: 2,918
 |
Moderator note:
The size limit for images posted inline on the forums is 800x600. I've converted the image to a link. If you would like to post it inline, please resize it before doing so. Thanks!
__________________
Computer: Intel Core i5-750 2.66 GHz quad-core processor @ 3.71 GHz | Asus P7P55D-E motherboard | Crucial 4 GB DDR3-1333 RAM | nVidia GeForce 8600GT | 2x WD Caviar Black WD1501FASS 1.5TB hard drives in RAID 1 | Antec Sonata III case with Antec EarthWatts 500-watt PSU | Dual Dell UltraSharp 2408WFP 24" widescreens | Windows 7 Ultimate 64-bit Other: 2005 Subaru Legacy 2.5GT sedan 5MT | Samsung Epic 4G Smartphone | Mamiya M645 1000S medium-format SLR with 55mm f/2.8, 70mm f/2.8, 210mm f/4, teleconverter, 120 and 220 film backs | Olympus E-PL1 Micro-4/3s DSLR with 14-42mm and 40-150mm lenses |
|
|
|
|
01-12-2012, 03:15 PM
|
#19 |
|
Forum Administrator
Staff
Premium Member
Join Date: May 2000
Location: Joplin MO
Posts: 37,771
|
Admin note:
We would actually prefer that inline images not be posted at all. Attachments or links are greatly preferred. |
|
|
|
|
01-15-2012, 04:12 PM
|
#20 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
Sorry for the mistake, and thanks for the help.
|
|
|
|
|
01-20-2012, 05:04 PM
|
#21 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
Hey, I am having problems getting my pc to run my SSD as cache.
I did some research and found that I need set my SATA drivers to RAID before installing the OS. So I changed it in my bios to RAID, saved, and rebooted. Then when installing windows it nearly completes, but before it does it says "Windows Setup could not configure Windows to run on this computer's hardware." What could the problem be? Last edited by Un24; 01-20-2012 at 05:24 PM. |
|
|
|
|
01-20-2012, 05:46 PM
|
#22 |
|
Forum Administrator
Staff
Premium Member
Join Date: May 2000
Location: Joplin MO
Posts: 37,771
|
Are you doing this with the SSD *disconnected*? Is your hard drive SATA 3.0 or 6.0, and which SATA controller are you using?
|
|
|
|
|
01-20-2012, 07:59 PM
|
#23 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
Newegg.com - HITACHI Deskstar 7K1000.D HDS721075DLE630 (0F13179) 750GB 7200 RPM 32MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive -Bare Drive
Newegg.com - HITACHI Deskstar 5K3000 HDS5C3020ALA632 (0F12117) 2TB 32MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive -Bare Drive Newegg.com - Intel 320 Series SSDSA2CT040G3K5 2.5" 40GB SATA II MLC Internal Solid State Drive (SSD) The SSD is connected. the only SATA controller I used was the motherboard. Do I need to buy am SATA controller? |
|
|
|
|
01-20-2012, 09:03 PM
|
#24 |
|
Forum Administrator
Staff
Premium Member
Join Date: May 2000
Location: Joplin MO
Posts: 37,771
|
You must leave the SSD and the second hard drive DISCONNECTED until Windows is installed and the SRT software is installed.
Are you using the SATA 6.0 or the SATA 3.0 controller? |
|
|
|
|
01-21-2012, 01:56 AM
|
#25 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
alright I'll give that a try tomorrow. I am using this motherboard, so my guess is SATA 6.0
Newegg.com - ASUS P8Z68-V LE LGA 1155 Intel Z68 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard with UEFI BIOS |
|
|
|
|
01-21-2012, 07:51 AM
|
#26 | |
|
Moderator
Staff
Premium Member
Join Date: Nov 2008
Location: Detroit, MI
Posts: 3,794
|
Quote:
|
|
|
|
|
|
01-21-2012, 08:00 AM
|
#27 |
|
Forum Administrator
Staff
Premium Member
Join Date: May 2000
Location: Joplin MO
Posts: 37,771
|
That board has 2 SATA 6.0 and 4 SATA 3.0 ports.
|
|
|
|
|
01-21-2012, 04:50 PM
|
#28 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
Since I only have 2 SATA 6.0 ports do the 2 HDD hard drive use those and the SSD drive use a SATA 3.0 port? Or can a SATA 6.0 harddrive run on a 3.0 port, and I should use the SSD drive on a 6.0 port?
basicly: HDD (750gb) 6.0 port HDD (2 TB) 6.0 port SDD (40 GB) 3.0 port or... HDD (750gb) 6.0 port HDD (2 TB) 3.0 port SDD (40 GB) 6.0 port ? |
|
|
|
|
01-21-2012, 05:42 PM
|
#29 |
|
Member (5 bit)
Join Date: Dec 2011
Posts: 16
|
I unplugged the 2 TB hard drive and the SSD drive. But I ran into the same problem when installing windows.

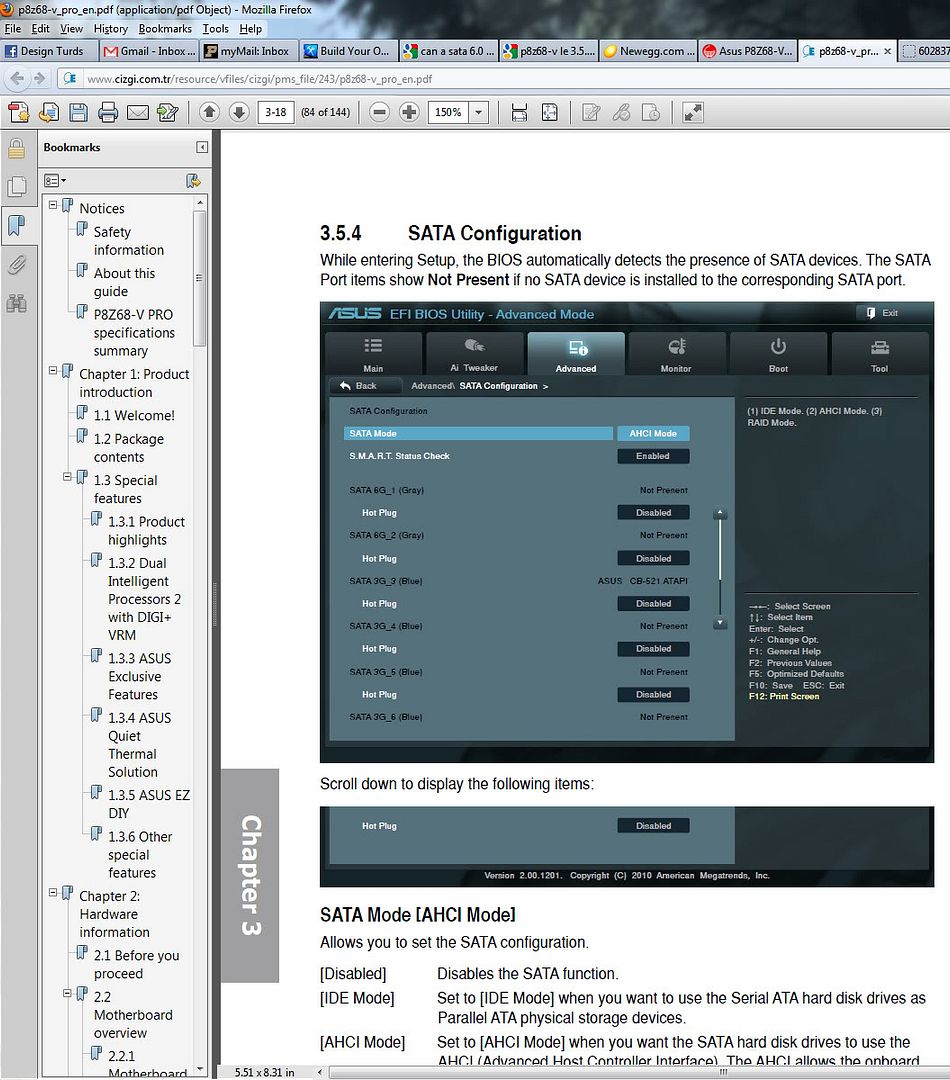

The only thing I am changing in the bios is the SATA Mode to RAID. http://img.photobucket.com/albums/v2...4/SATAMode.jpg That should show you what I am changing better than I can describe. Then I am installing windows, it finishes to were it say it is completing install, then right before it is done I get the message "Windows Setup could not configure Windows to run on this computer's hardware." Is there something more i need to be doing in the bios? Because I am completely lost. I had only the 750gb SATA 6.0 harddrive in. Plugged into a 6.0 port. Windows will install in the default bios setup, but not when i change the SATA mode to RAID. From further research it appears I need to, "Create a RAID volume Follow these steps to create a RAID volume: When the Intel® RST option ROM status screen displays during POST, press Ctrl and I at the same time to enter the option ROM user interface...." But I do not get that screen, and pressing Ctrl+I at any point is not working. Last edited by Un24; 01-21-2012 at 07:03 PM. |
|
|
|
|
01-24-2012, 12:17 PM
|
#30 |
|
Forum Administrator
Staff
Premium Member
Join Date: May 2000
Location: Joplin MO
Posts: 37,771
|
The Intel 3.0 SSD works best on a 3.0 port. The way I understand RST, you don't create a RAID volume, so I dunno why you are having these issues. The RST is set up after the fact with the RST software.
|
|
|
|
|
