Old 11-29-2006, 09:45 PM   #181
Member (10 bit)

Spearball's Avatar

Join Date: Oct 2005
Posts: 670
Ya thats my old.... Geforce 7800 GTX 512 MB. Im gonna wait for the next big dx10 card and get two of them in sli. Finally.. I dont know how they would fit anywhere in there though i gotta arrange more stuff. The inside of my case changed a lot since i took those pictures i can take new ones. Then maybe if i got any left over money i can max the rig with the most powerful cpu it can handle. The athlon FX 60. Once i hit 18 im off for my second build.
Last edited by Spearball; 11-29-2006 at 09:48 PM.
Spearball is offline   Reply With Quote
Old 11-30-2006, 01:24 PM   #182
Member (8 bit)

fleeingpepper's Avatar

Join Date: Oct 2005
Location: Tulsa, OK
Posts: 185
Send a message via AIM to fleeingpepper
I just finished building my new computer about 2 weeks ago. Haven't done any modding to it yet. But here's some pictures. I have one picture where it's next to my old computer that I put the window into.
Attached Images
File Type: jpg mini-IMAG0044.JPG (62.3 KB, 457 views)
File Type: jpg mini-IMAG0045.JPG (54.0 KB, 312 views)
File Type: jpg mini-IMAG0046.JPG (71.1 KB, 306 views)
fleeingpepper is offline   Reply With Quote
Old 11-30-2006, 02:29 PM   #183
Not so new

newbuilder14's Avatar

Join Date: Aug 2006
Location: Maryland, United States
Posts: 2,576
Send a message via AIM to newbuilder14
^ Nice but clean up your wiring. I like the case.
__________________
“To me there are three things everyone should do every day. Number one is laugh. Number two is think -- spend some time in thought. Number three, you should have your emotions move you to tears. If you laugh, think and cry, that's a heck of a day.” - Jim Valvano
newbuilder14 is offline   Reply With Quote
Old 11-30-2006, 03:00 PM   #184
Shiro Usagi
Premium Member

Cricket's Avatar

Join Date: Sep 1999
Location: Kaneohe, Hawaii
Posts: 34,002
Quote:
Originally Posted by newbuilder14
^ Nice but clean up your wiring. I like the case.
Did you get a chance to get your wiring cleaned up?

Cricket
Cricket is offline   Reply With Quote
Old 11-30-2006, 03:22 PM   #185
Member (8 bit)

fleeingpepper's Avatar

Join Date: Oct 2005
Location: Tulsa, OK
Posts: 185
Send a message via AIM to fleeingpepper
Yea, I always tell myself I'm gonna clean up my wiring, but I'm really good at procrastinating. Will either do it if I get snowed in tomorrow, or over Christmas break time. That case is great for cleaning wiring too, there's lots of room between the other side panel and the motherboard plate.
fleeingpepper is offline   Reply With Quote
Old 11-30-2006, 03:33 PM   #186
Not so new

newbuilder14's Avatar

Join Date: Aug 2006
Location: Maryland, United States
Posts: 2,576
Send a message via AIM to newbuilder14
Quote:
Originally Posted by Cricket
Did you get a chance to get your wiring cleaned up?

Cricket
Yeah, somewhat. Took your recommendation.
newbuilder14 is offline   Reply With Quote
Old 11-30-2006, 06:09 PM   #187
Member (9 bit)

cuog's Avatar

Join Date: Aug 2004
Location: powhatan "the stix" VA
Posts: 511
Send a message via AIM to cuog Send a message via Skype™ to cuog

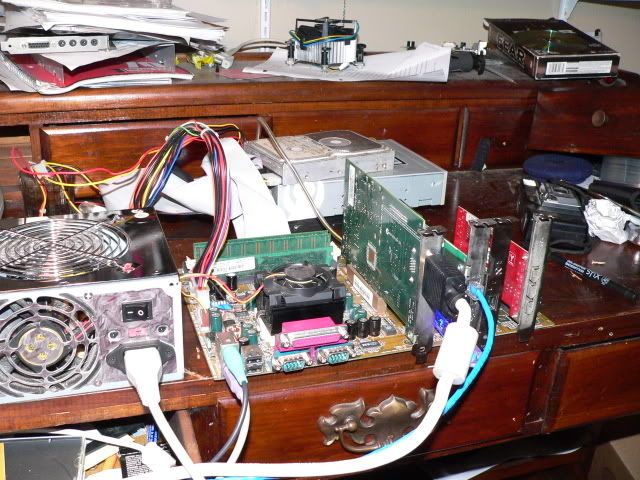

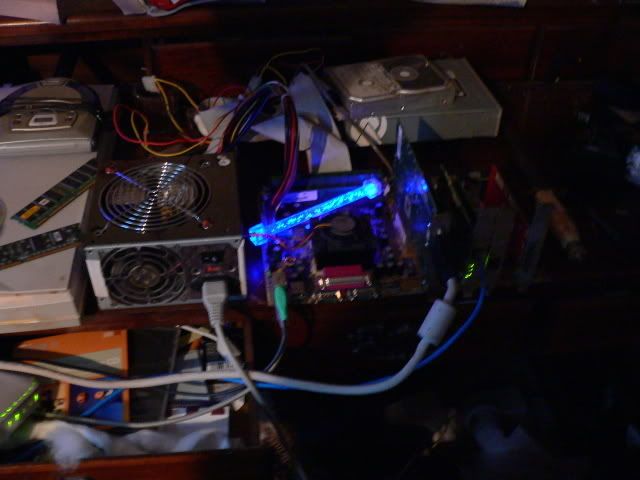

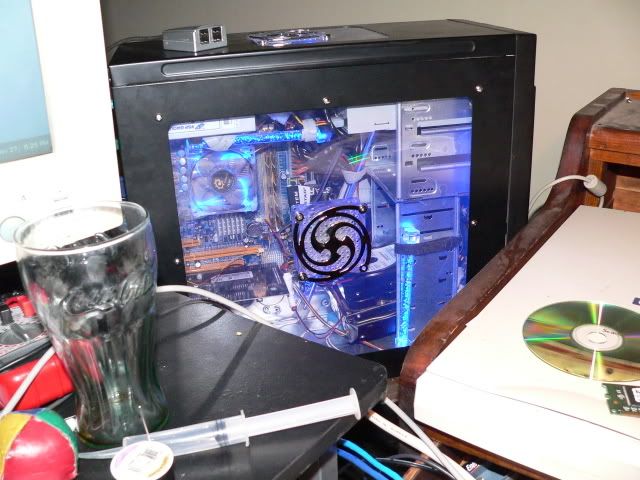

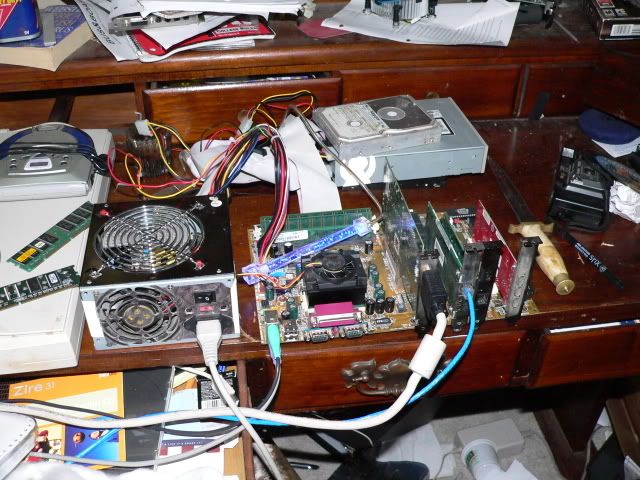

More of mine, the ont on the desk is my server, waiting for its case to be built
http://i62.photobucket.com/albums/h87/cuog/P1010211.jpg
http://i62.photobucket.com/albums/h87/cuog/P1010210.jpg
http://i62.photobucket.com/albums/h8...P1010209-1.jpg
http://i62.photobucket.com/albums/h87/cuog/P1010208.jpg
__________________
|>Sempron64 3000+ @2450 Mhz and counting||1.5 gb AData V-Series RAM||Biostar TForce6100 skt754 || eVGA 7600GT KO 600 core/803 mem||
|> Dual 1.26 GHz Pentium III || 2GB ECC Registered RAM || 18gb scsi 10 HD||
Last edited by glc; 07-15-2008 at 01:38 PM.
cuog is offline   Reply With Quote
Old 11-30-2006, 06:45 PM   #188
Shiro Usagi
Premium Member

Cricket's Avatar

Join Date: Sep 1999
Location: Kaneohe, Hawaii
Posts: 34,002
I think two of the images are identical.

And what is that big knife for?

Maid on vacation?

Cricket
Cricket is offline   Reply With Quote
Old 11-30-2006, 07:35 PM   #189
Member (9 bit)

cuog's Avatar

Join Date: Aug 2004
Location: powhatan "the stix" VA
Posts: 511
Send a message via AIM to cuog Send a message via Skype™ to cuog
Quote:
Originally Posted by cricket
And what is that big knife for?
Cutting things... Actually I collect daggers and that was the only one i could find when I needed to cut open my pakage
Quote:
Originally Posted by Cricket
Maid on vacation?
Maid like those people that do that cleaning thing? eh thats supposed to be my job but with school I've been slacking.
cuog is offline   Reply With Quote
Old 11-30-2006, 08:36 PM   #190
Member (8 bit)

fleeingpepper's Avatar

Join Date: Oct 2005
Location: Tulsa, OK
Posts: 185
Send a message via AIM to fleeingpepper
Ok, it took me forever because there were many, many interruptions, but I got my wiring cleaned up. As well as I could only using normal 12" zip ties. Couldn't find my mini ones. I have a pic of before and two after I was done.

Better?

EDIT: Sorry the pics are kinda blurry, my camera is really old, and it only has a lightening feature, not a flash. So I use that lighting feature and the shutter stays open for like 3 secs to get all the light, so I have to hold the camera really really still.
Attached Images
File Type: jpg mini-IMAG0284.JPG (72.9 KB, 357 views)
File Type: jpg mini-IMAG0285.JPG (68.1 KB, 286 views)
File Type: jpg mini-IMAG0286.JPG (62.9 KB, 270 views)
fleeingpepper is offline   Reply With Quote
Old 11-30-2006, 10:13 PM   #191
Member (10 bit)

Spearball's Avatar

Join Date: Oct 2005
Posts: 670
Thats much better there. I also like your case.
Spearball is offline   Reply With Quote
Old 11-30-2006, 10:34 PM   #192
Member (8 bit)

fleeingpepper's Avatar

Join Date: Oct 2005
Location: Tulsa, OK
Posts: 185
Send a message via AIM to fleeingpepper
Thanks, and wow, I had trouble with the Firewire case cable. That's a full tower. And the Firewire slot in the motherboard was in the opposite corner. The cable barely reached just going straight across over everything. I connected all of the fan and LED power cables that connected straight to the PSU behind the back plate, in between the side panel and that. In fact, about half my cables are going through back there, the 5.25 inch drive bays have some holes that leads and some molex connectors can go through. That case is amazing, I love it. Sadly I won't be able to mod it for some time, if at all. I split the cost of my new computer with my parents, considering the fact that I'm 14 and am getting a real job soon. And that case included part of it. The day it came in my dad said I better not come at that case with his tin snips considering the cost.

Your case is pretty spiffy, but I'm really picky, I won't get a case if I can't get my drives to match the color, even if it does have a front door. When I open it I'd think it didn't look too nice. But that's what doors are for I guess.
fleeingpepper is offline   Reply With Quote
Old 11-30-2006, 10:36 PM   #193
Shiro Usagi
Premium Member

Cricket's Avatar

Join Date: Sep 1999
Location: Kaneohe, Hawaii
Posts: 34,002
Quote:
Originally Posted by fleeingpepper
Ok, it took me forever because there were many, many interruptions, but I got my wiring cleaned up. As well as I could only using normal 12" zip ties. Couldn't find my mini ones. I have a pic of before and two after I was done.

Better?
Yes, much neater.
Quote:
Originally Posted by fleeingpepper
EDIT: Sorry the pics are kinda blurry, my camera is really old, and it only has a lightening feature, not a flash. So I use that lighting feature and the shutter stays open for like 3 secs to get all the light, so I have to hold the camera really really still.
Or use a tripod.
Quote:
Originally Posted by newbuilder14
Yeah, somewhat. Took your recommendation.
Do you have newer pics of the cleaned up wiring?

I just swapped cases for my 2.8GHz P4 system (freeing up my good case for a C2D build I'm doing in a few months). The case is just a boring old Antec mid-tower with no exterior mods but I did mod the chassis...I'll try and post a few pics later.

Cricket
Cricket is offline   Reply With Quote
Old 12-02-2006, 12:11 PM   #194
Not so new

newbuilder14's Avatar

Join Date: Aug 2006
Location: Maryland, United States
Posts: 2,576
Send a message via AIM to newbuilder14
Sure, Cricket, here:

http://img402.imageshack.us/img402/2682/mypcqf2.jpg

I look forward to getting rounded cables, more zip ties, etc.
newbuilder14 is offline   Reply With Quote
Old 12-02-2006, 02:17 PM   #195
Shiro Usagi
Premium Member

Cricket's Avatar

Join Date: Sep 1999
Location: Kaneohe, Hawaii
Posts: 34,002
Quote:
Originally Posted by Cricket
I just swapped cases for my 2.8GHz P4 system (freeing up my good case for a C2D build I'm doing in a few months). The case is just a boring old Antec mid-tower with no exterior mods but I did mod the chassis...I'll try and post a few pics later.
Took a picture of my case interior so you can get some ideas for wire management and I also took a picture of my chassis mod.

For wire management I just try to keep everything together and tucked out of the airflow paths...the big bundle of wires is actually a few inches above the heatsink. I anchored it to the chassis brace at the top. I use HAL9000's ribbon cable origami folding trick to help keep the ribbon cables under control.

For the chassis mod all I did was cut out a big rectangular opening where the original intake fan was to improve airflow a bit...the front of this Antec case has air vents in the face plate right in front of the rectangular opening. And I'm not using a floppy drive so the top hard drive (main system drive) gets some cool air from the floppy slot opening (molded in floppy slot, not an exposed face plate). I don't use intake fans, I rely on the exhaust fan to create a negative pressure in the case which in turns draws cool air in from the front of the case. This case has a 92mm exhaust fan as well as the 120mm fan in the FSP PSU.

You can also see the 50mm fan I screwed onto the passive heatsink of the Matrox G550...my attempt at ghetto video card cooling.

And you can also see the heatsink I thermal epoxied onto the P4P800SE southbridge to help keep it cool.

Cricket
Attached Images
File Type: jpg Case Swap.jpg (99.5 KB, 422 views)
File Type: jpg Chassis Mod.jpg (99.0 KB, 414 views)
Last edited by Cricket; 12-02-2006 at 02:22 PM.
Cricket is offline   Reply With Quote
Old 12-02-2006, 02:27 PM   #196
Not so new

newbuilder14's Avatar

Join Date: Aug 2006
Location: Maryland, United States
Posts: 2,576
Send a message via AIM to newbuilder14
Very, very organized. Thanks for posting this up - it will help many people.
newbuilder14 is offline   Reply With Quote
Old 12-03-2006, 08:36 AM   #197
Member (14 bit)
Premium Member

TwoRails's Avatar

Join Date: Jan 2002
Location: The Great NorthWest
Posts: 12,594
The first thing I noticed was a real live speaker!!
TwoRails is offline   Reply With Quote
Old 12-06-2006, 01:02 PM   #198

hitchface's Avatar

Join Date: Dec 2006
Location: Alberta, Canada
Posts: 1,387
I suppose that the speaker is just there for kicks? I like it.

Oh yeah, hey all. First time here, how ya doin'? Figured I'd wander about and see if I could get any cool mod/wiring cleanup ideas.

So, idea. I have an Antec Nine Hundred case...I'm thinkin about getting a cold cathode in there, but I don't want it to light up like daytime in there, just the edges of the side window...like a fiber-optic kind of effect. All I can think of for now is to wall off the side that would shine on the components. Any other ideas?

And another question...seeing as my machine is called "Aviator" and all...any good ideas on case fans? Looking to replace the ones I have now with something to fit the bill. I saw an Aerocool Xtreme Turbine fan that looked up to the job, but it had terrible CFM and noise characteristics.
__________________
Disclosure: I make bad music. Listener beware.
Last edited by hitchface; 12-06-2006 at 05:13 PM.
hitchface is offline   Reply With Quote
Old 12-06-2006, 05:25 PM   #199
Shiro Usagi
Premium Member

Cricket's Avatar

Join Date: Sep 1999
Location: Kaneohe, Hawaii
Posts: 34,002
Quote:
Originally Posted by hitchface
I suppose that the speaker is just there for kicks?
No, it's there for a reason. My motherboard doesn't have a built in piezo speaker so I have to use a real PC case speaker in order to hear any BIOS beeps.
Quote:
Originally Posted by hitchface
Oh yeah, hey all. First time here, how ya doin'? Figured I'd wander about and see if I could get any cool mod/wiring cleanup ideas.

So, idea. I have an Antec Nine Hundred case...I'm thinkin about getting a cold cathode in there, but I don't want it to light up like daytime in there, just the edges of the side window...like a fiber-optic kind of effect. All I can think of for now is to wall off the side that would shine on the components. Any other ideas?

And another question...seeing as my machine is called "Aviator" and all...any good ideas on case fans? Looking to replace the ones I have now with something to fit the bill. I saw an Aerocool Xtreme Turbine fan that looked up to the job, but it had terrible CFM and noise characteristics.
This thread is for sharing a completed case mod project. Please post a new thread to ask for ideas.

Cricket
Cricket is offline   Reply With Quote
Old 12-06-2006, 05:31 PM   #200

hitchface's Avatar

Join Date: Dec 2006
Location: Alberta, Canada
Posts: 1,387
Sorry, saw others asking for ideas and followed suite.
hitchface is offline   Reply With Quote
Old 12-08-2006, 09:17 PM   #201
Not so new

newbuilder14's Avatar

Join Date: Aug 2006
Location: Maryland, United States
Posts: 2,576
Send a message via AIM to newbuilder14
Many old cases used similar speakers.
newbuilder14 is offline   Reply With Quote
Old 04-29-2007, 04:07 AM   #202
just a tech

ssahl's Avatar

Join Date: Jul 2001
Location: central valley CA
Posts: 1,422
cricket, my ipod has more cables on it then that! LOL jk
I'd post a picture of mine, but I dont even think you can hardly see the motherboard because of all the cables, LOL
ssahl is offline   Reply With Quote
Old 05-20-2007, 10:50 PM   #203
Member (10 bit)

Spearball's Avatar

Join Date: Oct 2005
Posts: 670
Here is my new comp..... Or i should say my new case and water cooling setup as i got bored of the old one. I don't mind the wiring i just like the look. The pics are kinda fast taken so ill post better ones when i can.

http://s40.photobucket.com/albums/e220/spearball/?
Spearball is offline   Reply With Quote
Old 05-21-2007, 10:50 AM   #204
Member (14 bit)
Premium Member

TwoRails's Avatar

Join Date: Jan 2002
Location: The Great NorthWest
Posts: 12,594
pretty cool, Spearball, I like it
TwoRails is offline   Reply With Quote
Old 05-22-2007, 10:03 PM   #206
Member (10 bit)

Spearball's Avatar

Join Date: Oct 2005
Posts: 670
Hey i really like that the tubing you used is original
Spearball is offline   Reply With Quote
Old 06-04-2007, 12:22 PM   #207
Member (2 bit)

drmckiller's Avatar

Join Date: Jun 2007
Location: cant tell anyone
Posts: 2
hey if the owner of compaq saw that i bet he would fire his guy and employ you lol
drmckiller is offline   Reply With Quote
Old 07-12-2007, 03:23 PM   #208
Member (10 bit)

regans cortina's Avatar

Join Date: Aug 2002
Location: LIVERPOOL U.K.
Posts: 930
Send a message via MSN to regans cortina
Just rebuilt mine , added a load of different parts and a different case

http://img.photobucket.com/albums/v3...o/DSC00122.jpg
http://img.photobucket.com/albums/v3...o/DSC00123.jpg
__________________
Asus a8r 32mvp Deluxe motherboard, Athlon 64 4800+ Dual Core Socket 939 Water Cooled, 2048 Corsair ddr400 twin x xms pro + led lights, 2x Ati Radeon X1950XTX pci express graphics in crossfire mode, Creative soundblaster X-FI Fatal1ty series, Wd 80gb + Wd 40gb 7500 rpm se,WD Sata 2 500gb hd, Maxtor Diamondmax Plus 9 Sata 160 gb, External Maxtor OneTouch 250gb Firewired HDD, Thermaltake Tai Chi WaterCooled case, Enermax Noisetaker 600 watt Powersupply , Win Vista Ultimate Retail, 2 x Pioneer 111 16x16 Dual Layer dvdrw, Harmon kardon speakers, Samsung 226bw 22' widescreen
regans cortina is offline   Reply With Quote
Old 07-12-2007, 06:05 PM   #209
Defenestrator

Stuey's Avatar

Join Date: Jan 2005
Location: NYC & NJ
Posts: 1,371
Quote:
Originally Posted by regans cortina
Just rebuilt mine , added a load of different parts and a different case

http://img.photobucket.com/albums/v3...o/DSC00122.jpg
http://img.photobucket.com/albums/v3...o/DSC00123.jpg
Is that an air piston or spring based door return?

Details! (please) =)
__________________
ToolGuyd.com - My Tool Blog
Stuey is offline   Reply With Quote
Old 07-12-2007, 06:44 PM   #210

hitchface's Avatar

Join Date: Dec 2006
Location: Alberta, Canada
Posts: 1,387
Please say hydraulic....because that would be soooo cool.
hitchface is offline   Reply With Quote
Reply
Page 7 of 10 « First 56 7 89 Last »

Bookmarks

Still Need Help? Type Your Keywords Here:


« Previous Thread | Next Thread »
Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes Rate This Thread
Linear Mode Linear Mode
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts
BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are Off
Pingbacks are Off
Refbacks are On


All times are GMT -5. The time now is 06:49 AM.
Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2013, vBulletin Solutions, Inc.
SEO by vBSEO 3.6.1

PCMech - Archive - Top
